Clopay’s Intellicore overhead doors meet the needs of commercial buildings that require exceptional climate control. They feature polyurethane insulation which helps keep the building’s interior cooler in summer and warmer in winter.
Our energy-efficient commercial doors include stucco or woodgrain embossed steel exteriors with flush, minor ribbed, or raised panel section designs. Ideal applications include warehouses, manufacturing plants, municipal buildings and retail stores.
ENERGY SERIES WITH INTELLICORE®

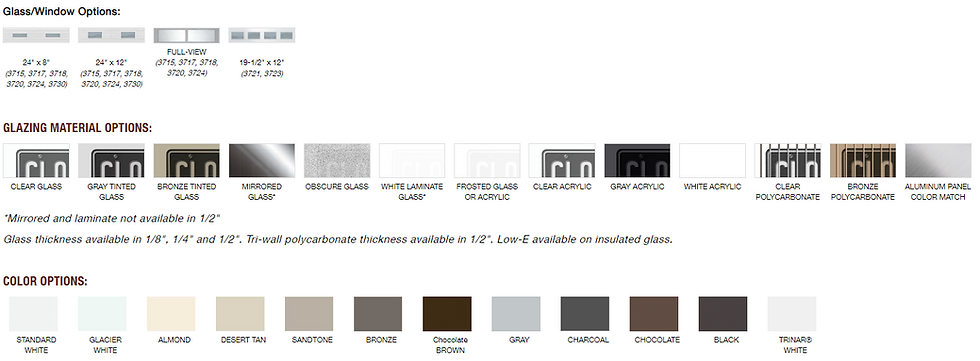

Insulated and Non-insulated doors come with a variety of options to address your building requirements. Options are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.
Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:
- California SB 1013
- Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
- Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
- New Jersey A-5583/S-3919 – Greenhouse Gas Bill

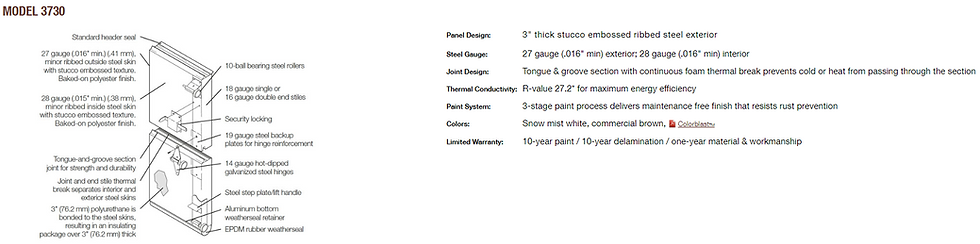

MODEL 3730
Panel Design: 3" thick stucco embossed ribbed steel exterior
Steel Gauge: 27 gauge (.016" min) exterior; 28 gauge (.016" min) interior Joint Design: Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section Thermal Conductivity: R-value 27.2* for maximum energy efficiency Paint System: 3-stage paint process delivers maintenance free finish that resists rust prevention Colors: Snow mist white, commercial brown, ColorblastTM Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship MODEL 3720 / 3724 / 3722
Panel Design: (3720 & 3724) 2" thick stucco embossed steel exterior with minor ribbed pattern
(3722) 2" thick stucco embossed flush steel exterior
Steel Gauge: (3720) 27 gauge (.016" min) exterior; 28 gauge (.016" min) interior
(3724) 24 gauge (.022" min) exterior; 28 gauge (.016" min) interior
(3722) 20 gauge (.034" min) exterior; 28 gauge (.016" min) interiorJoint Design: Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section Thermal Conductivity: R-value 18.4* for maximum energy efficiency Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation Colors: (3720) Standard white, glacier white, commercial tan, chocolate, mocha brown, gray, Trinar white, Trinar beige, charcoal and Colorblast™
(3724) Standard white, commercial tan, chocolate, black, gray, Trinar white and Colorblast™
(3722) Standard white, chocolate and Colorblast™Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship MODEL 3717 / 3718
Panel Design: (3717) 1 3/4" thick stucco embossed steel exterior with minor ribbed pattern
(3718) 1 3/4" thick stucco embossed flush steel exterior
Steel Gauge: 27 gauge (.016" min) exterior; 28 gauge (.016" min) interior Joint Design: Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section Thermal Conductivity: R-value 16.2* for maximum energy efficiency Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation Colors: Pre-painted snow mist white, commercial brown, tan or gray. Optional Trinar white. Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship MODEL 3715
Panel Design: 1 3/8" thick stucco embossed steel with minor ribbing Steel Gauge: 27 gauge (.016" min) exterior; 28 gauge (.016" min) interior Joint Design: Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section Thermal Conductivity: R-value 12.9* for maximum energy efficiency Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation Colors: Pre-painted snow mist white or commercial brown, tan and gray Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship COMMERCIAL HARDWARE
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.
- 14 gauge hinges
- Commercial 10 ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for easy operation
- Inside slide lock for increase security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
COMMERCIAL TRACK APPLICATIONS
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options. Learn more
COMMERCIAL TORSION SPRINGS
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles.
