Clopay Energy Series overhead sectional doors provide durability, energy efficiency and multiple performance and design options. They feature polystyrene insulation which helps reduce heating and cooling costs with years of reliable service.

These commercial doors offer stucco or woodgrain embossed steel exterior skins with flush, minor ribbed, or raised panel section designs. Ideal applications include warehouses, loading docks and industrial and agricultural facilities.

ENERGY SERIES

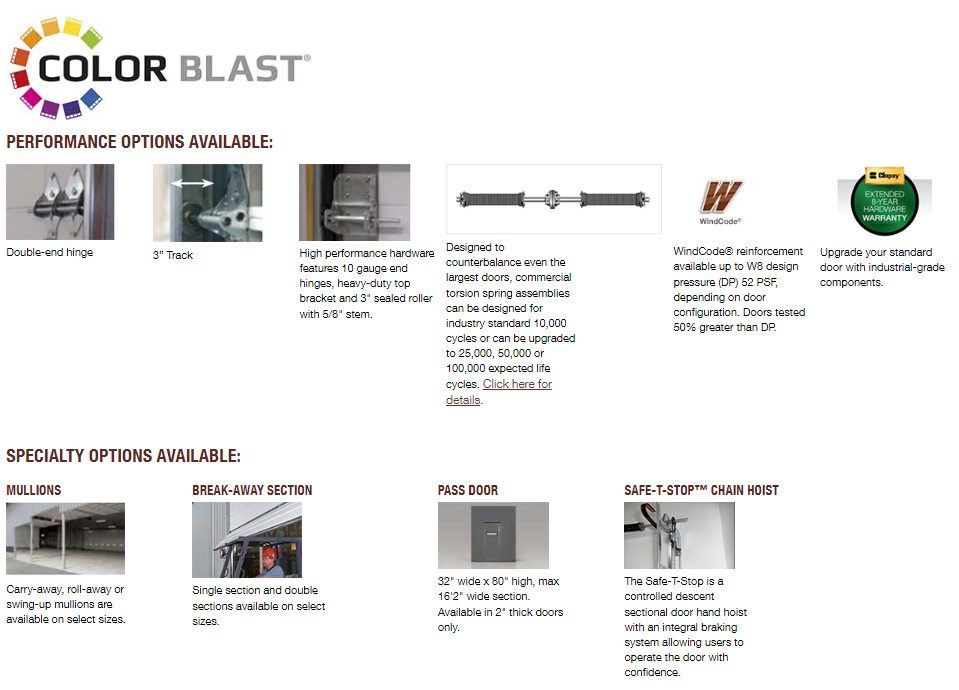

Insulated and Non-insulated doors come with a variety of options to address your building requirements. Options are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.
Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

California SB 1013

Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions

Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations

New Jersey A-5583/S-3919 – Greenhouse Gas Bill

MODEL 3200 / 3220

Panel Design:	2" thick stucco embossed steel with light ribbed (3200) or flush (3220) pattern
Steel Gauge:	24 gauge (.22" min) exterior (3200) 20 gauge (.034" min) exterior (3220) 27 gauge (.016" min) interior
Joint Design:	Tongue & groove section joint with silicone filled thermal break prevents cold or heat from passing through the section
Termal Conductivity:	R-value 9.1*
Paint System:	3-stage paint process delivers maintenance free finish that resists rust perforation
Colors:	Pre-painted white, brown, tan or gray (3200) Pre-painted white or brown (3220) Trinar white (3200)
Limited Warranty:	10-year paint / 10-year delamination / one-year material & workmanship

MODEL 3150 / 3154 / 3155

Panel Design:	1-3/8" thick stucco embossed steel with micro groove pattern (3150) 1-3/8" thick rasied woodgrain embossed steel (3154) 1-3/8" thick flush woodgrain embossed steel (3155)
Steel Gauge:	27 gauge (.016" min) exterior; 27 gauge (.016" min) interior
Joint Design:	Tongue & groove section joint with silicone filled thermal break prevents cold or heat from passing through the section
Termal Conductivity:	R-value 6.5*
Paint System:	3-stage paint process delivers maintenance free finish that resists rust perforation
Colors:	Pre-painted white, brown, commerical tan & gray (3150) Pre-painted white, brown, desert tan, hunter green, almond, sandtone, bronze (3154, 3155)
Limited Warranty:	10-year paint / 10-year delamination / one-year material & workmanship

COMMERCIAL HARDWARE

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.

14 gauge hinges

Commercial 10 ball steel rollers with options for nylon tire rollers

10,000 cycle torsion springs

Steel step plate and lift handle for easy operation

Inside slide lock for increase security

19 gauge steel hinge support plates

18-gauge single end stiles; 16-gauge double end stiles

Galvanized aircraft cables with 7:1 safety factory

2” or 3” track in a variety of configurations to meet building design requirements

COMMERCIAL TRACK APPLICATIONS

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options. Learn more

COMMERCIAL TORSION SPRINGS

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles.
